Elitech LD-100+ Upgraded Heated Diode Refrigerant Leak Detector Function-Elitech UK

Elitech LD-100+ is an upgraded version of LD-100. Compared with an ordinary corona sensor, the heated diode sensor features a much longer lifetime, up to 500 working hours. It's more accurate and minimizes false alarms. Moreover, it can detect more refrigerants and be more versatile. The halogen tester includes a refrigerant sensor head, mains unit, 3 AA Alkaline batteries, operator's manual, and performance report.

Product Specifications

Sensor Type	Heated diode
Detectable Gases	CFCs, HFCs, HCFCs, HCs, HFOs, and blends
Sensitivity	3g/y
Response Time	<3s
Reset	Automatical and Manual
Alarm Mode	Audible and visual alarm
Probe Length	42cm/16.5in
Working Hour	8h continuous use on a single charge
Operating Environment	Temperature: -10°C~ 52°C; Humidity: Maximum 90%RH (non-condensing)
Package Size	430x245x700 mm
Package Weight	350g (12.3oz)
Battery	3x AA Alkaline batteries (included)
Service	1-year repair service

Product Features


Heated Diode Sensor* The extremely high sensitivity of 3g/y Enables detection of even the smallest leaks	Auto and Manual Reset* Reset automatically or manually for use in all kinds of complex working environments	Quick Response* Quick response within 3 seconds for prompt detection

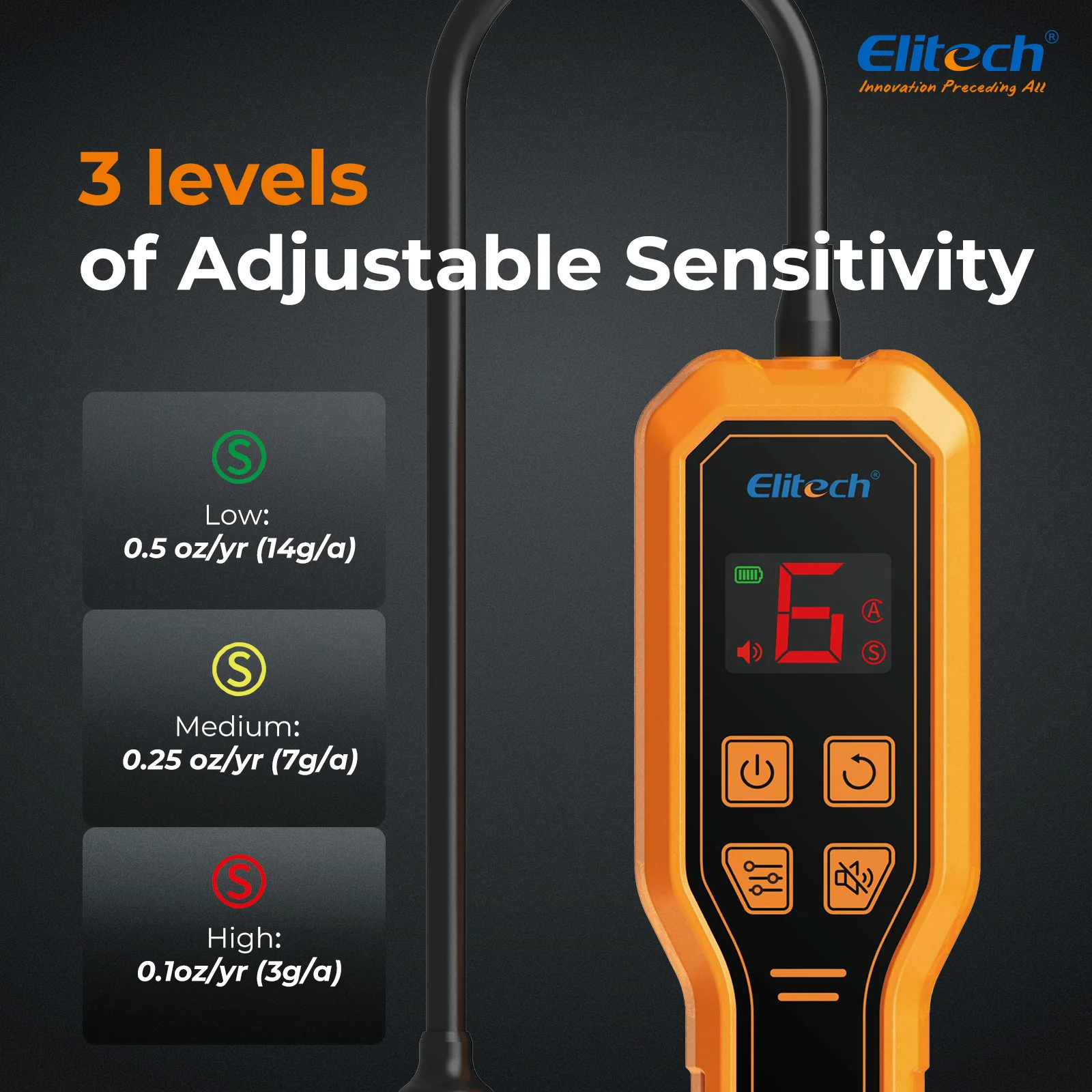

**3 Adjustable Sensitivity Levels*** CIt detects R11/R22/R32/R-1234yf/R134a/R404a/R410a and all halogenated refrigerants including CFCs, HFCs, HCFCs, HCs and HFOs	Pump-Suction Structure* Added accuracy and prompt reaction, in the meantime, to avoid moisture damage to the sensor	Power Indicator* Long battery working hour, lasting for up to 8 hours. The power indicator on-screen shows power left clearly

Elitech LD-100+ Related Documents

Elitech LD-100+ Refrigerant Leak Detector User Manual
Elitech LD-100+ Refrigerant Leak Detector ECM Certification

Elitech LD-100+ Upgraded Heated Diode Refrigerant Leak Detector Application-Elitech UK

Elitech HVAC Tools-Elitech UK

Related Blog

VINE VOICE of Elitech LD-100+ Refrigerant Leak Detector

Heated Diode Sensor Refrigerant Leak Detector

Elitech LD-100+ Upgraded Heated Diode Refrigerant Heat Pump Leak Detector, HVAC & Auto Air Conditioning Service Tool

Elitech ILD-100H Portable Heated Diode Refrigerant Leak Detector - High-Sensitivity Halogen Refrigerant Leakage Detection Tool for HVAC & Automotive A/C, Quick Leak Location, Sound + Graphic Alerts

Elitech ELD-210 Heated Diode Portable Semiconductor Refrigerant Leak Detector - High Sensitivity, Dual Alarm, Ergonomic Design for Quick & Accurate Leak Detection

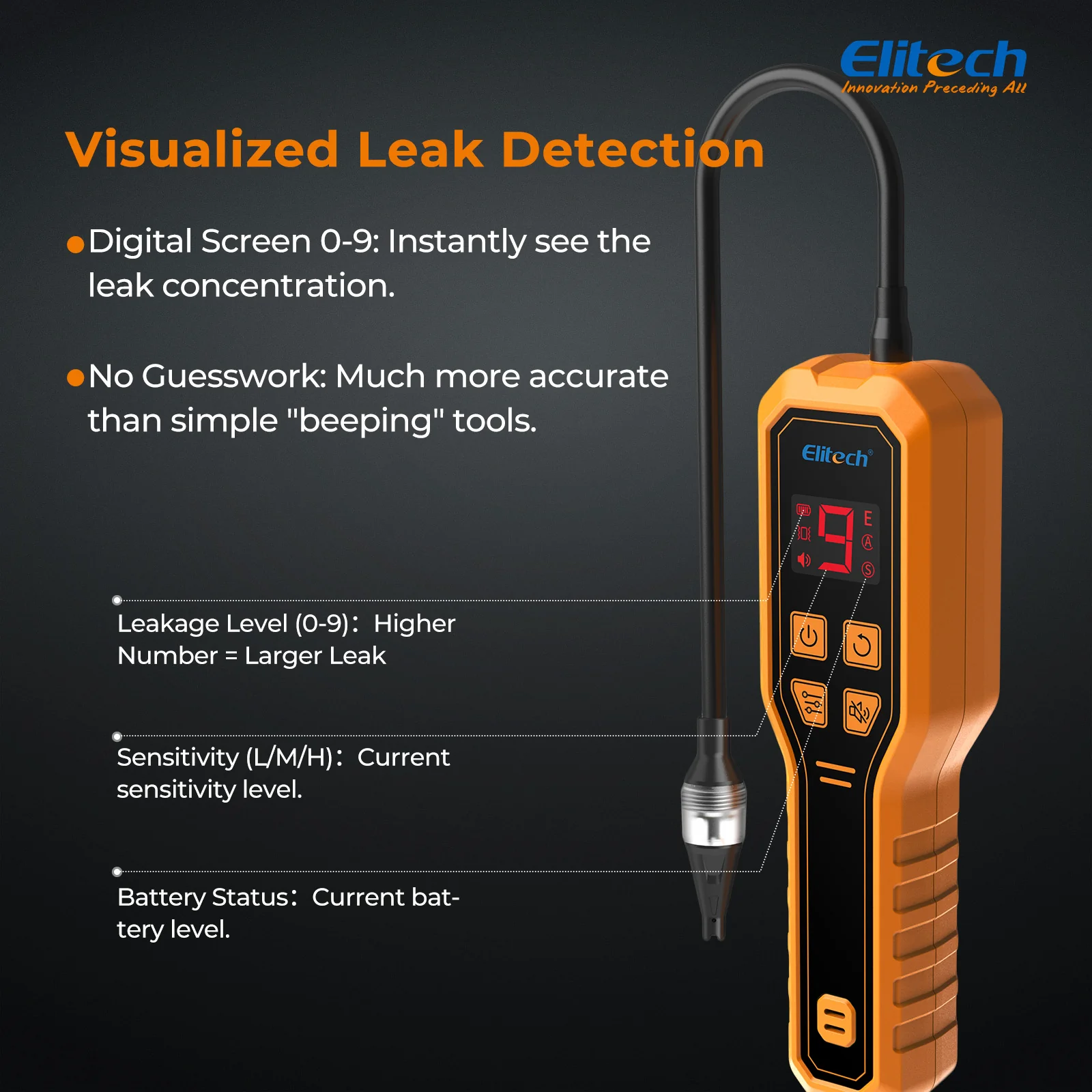

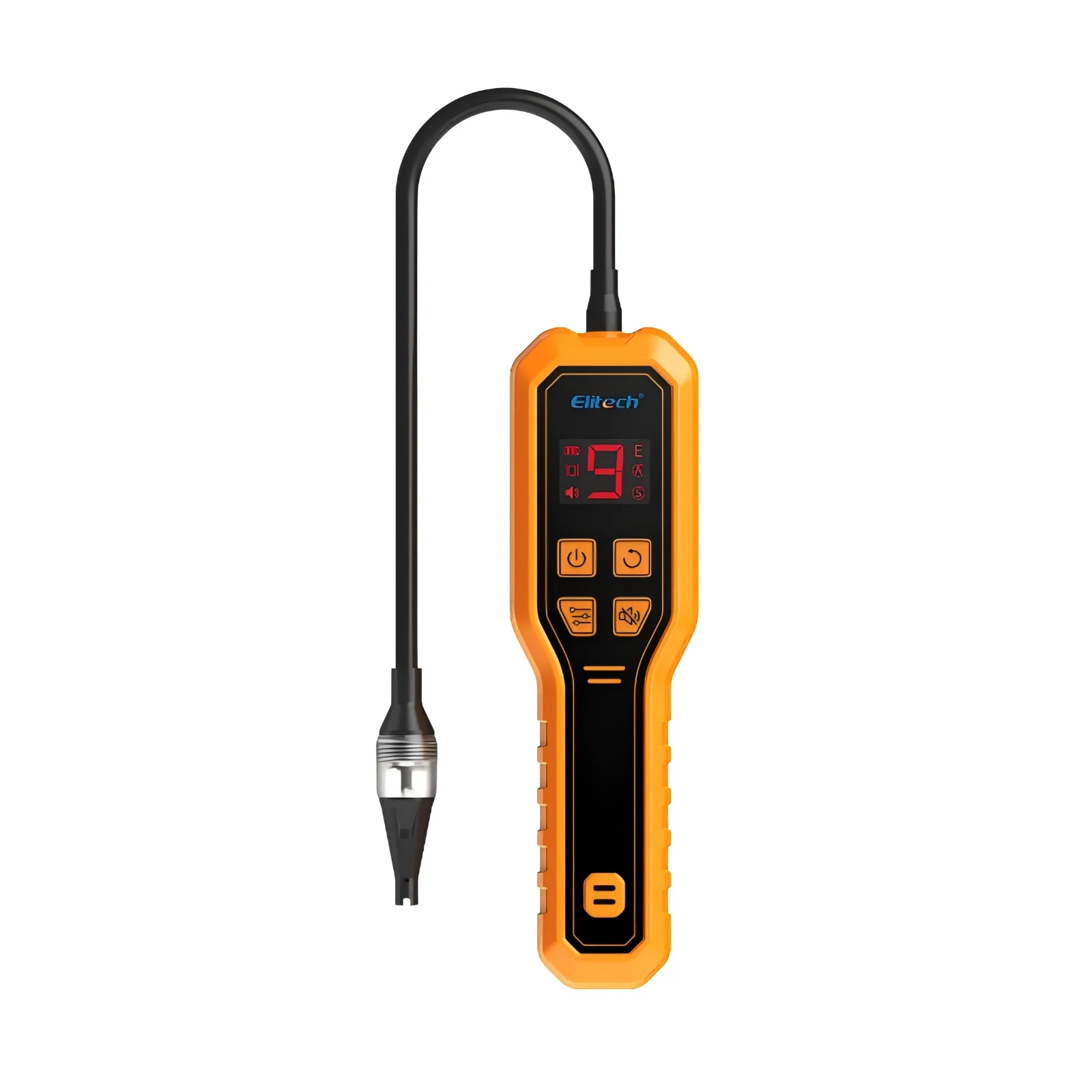

Elitech ELD-270 Heated Diode Refrigerant Leak Detector, HVAC Freon Sniffer with Digital Display & Vibration Alarm, High Sensitivity (2g/yr) for R410A R134a R1234yf R290 CFCs HCFCs HFCs
