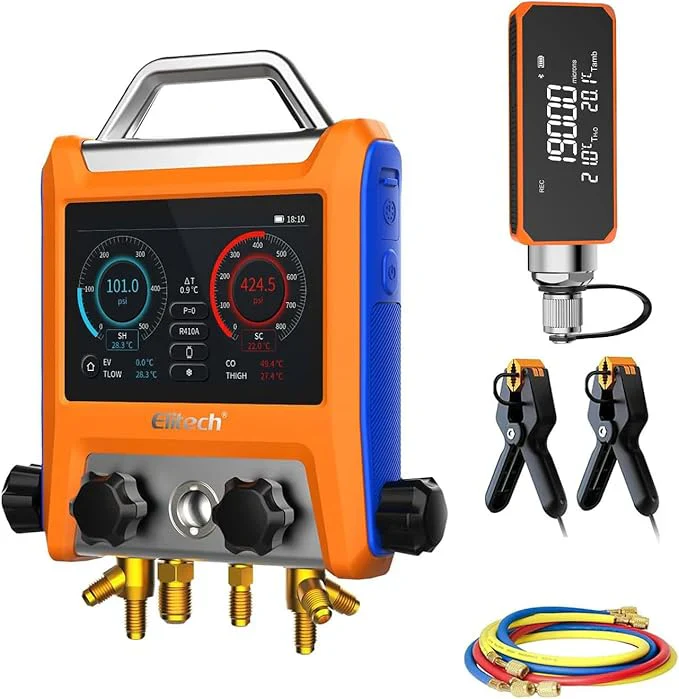

Elitech EMG-20V Intelligent Manifold gauge integrates the function of dual temperature test, dual pressure test, pressure holding measurement, vacuum measurement, super-heating, and sub-cooling calculation, refrigerant weight measurement, and data logging. All of these functions can be controlled on the big 5 inches touch screen or through a mobile APP from a distance, providing the most convenience to HVACR or auto AC technicians.

Product Feature

Pressure and temperature measurement

88 kinds of refrigerants' databases are built-in
Viewing saturation temperature
Automatic calculation of super-heating / sub-cooling
Switching between refrigeration and heating mode

Vacuum measurement

Vacuum monitoring
Vacuum leakage test
Estimate the remaining time of vacuum

Pressure Holding Test

Pressure maintaining leakage test
Dial curve mode switching

Manifold Valve

Filling/recycling switch
Vacuum switch
High and low-pressure valve switch

Product Specifications

Pressure (High-Pressure Port and Low-Pressure Port )

Measuring Range: -14.5~800psi/-1.0~56.2kg/cm2/-1.0~55.2bar/-0.1~5.5MPa
Accuracy: 0.5%FS
Resolution: 0.1psi/0.1kg/cm2/0.1bar/0.01MPa
Pressure unit: psi, inHg, kg/cm2, cmHg, bar, kPa, MPa
Data Sampling Frequency: 0.5S
Overload: 1000psi/70kg/cm2/69bar/6.8MPa

Temperature Clamp (High-Pressure Port and Low-Pressure Port )

Temperature Range: -40℉-300℉/ -40℃-150℃
Accuracy: ±0.1℃/±0.18℉
Resolution: 0.1℉/℃
Temperature Unit: ℉, ℃

Vacuum

Range: 0-19000 microns
Accuracy: 0-10000microns, ±10% of Reading / ±10 microns; 10000-19000microns, ±20% of Reading
Vacuum Unit： inHg, Torr, psia, mbar, mTorr, Pa, micron, kPa
Resolution: 0-400, 1 microns; 400-3000, 10 microns; 3000-10000, 100 microns; 10000-19000, 250 microns;
Interface: 1/4SAE and 1/4SAET
Sensor interface: PS/2*2 ( left interface is temperature & vacuum probe multiplexing)
USB Interface: Type-C*1 (for data export and charging)
Dimensions: 254*215*46mm
Weight: 3.5lb/1.5kg
Working temperature: -20~60℃/-4~140℉
Storage temperature: -40~80℃/-40~176℉

88 Refrigerants

R113	R114	R115	R116	R12	R123	R1233ZD	R1234ZE	R1234YF	R124	R125
R13	R134a	R14	R141B	R142B	R143A	R152A	R170	R22	R23	R236FA
R245FA	R290	R32	R401A	R401B	R401C	R402A	R402B	R403B	R404A	R406A
R407A	R407B	R407C	R407D	R407F	R408A	R409A	R410A	R410B	R412A	R413A
R414A	R414B	R416A	R417A	R417C	R420A	R421A	R421B	R422A	R422B	R422C
R422D	R424A	R426A	R427A	R428A	R429A	R434A	R437A	R438A	R441A	R443A
R448A	R449A	R450A	R452A	R452B	R453A	R454A	R454B	R455A	R458A	R500
R502	R503	R507A	R508A	R508B	R514A	R600	R600a	R601a	R718	R744

What's Included

1 x Vacuum transmitter (T-joint)
2 x Temperature clamp
1 x Bent joint
3 x Refrigerant hose
1 x Universal power adapter
1 x USB-C cable
1 x User Manual
1 x Carrying case
