Inframate C Points

1. Carbon Dioxide Detection*   CO2-Specific infrared sensor is designed specifically for the detection of R744 (CO2) refrigerant leaks.

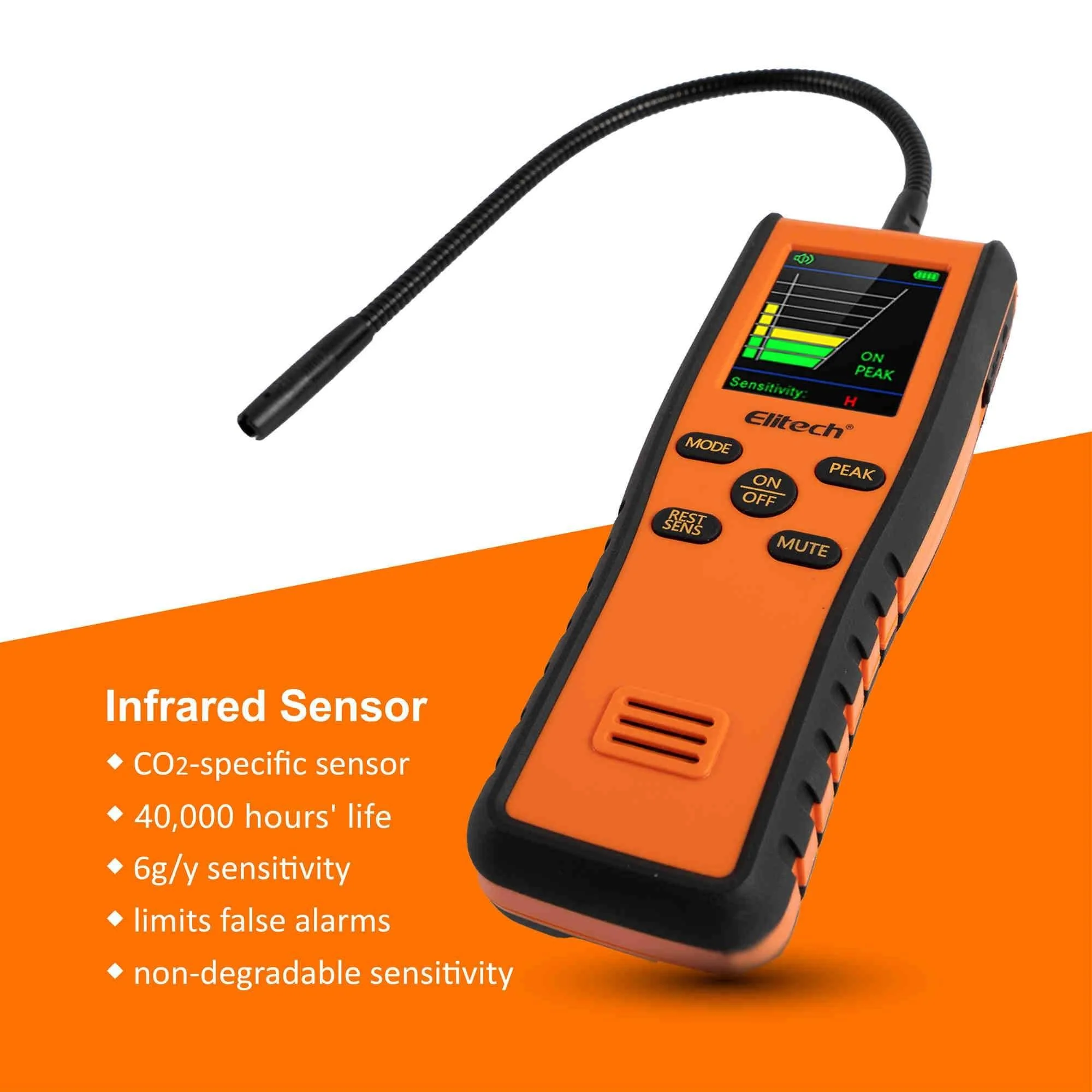

2. Long Sensor Life*    An infrared sensor can work up to 40,000 hours and its sensitivity won't degrade over time.
3. Large TFT LCD Screen*    Vividly displays leakage value, peak value, sensitivity level, battery power for very easy operation.

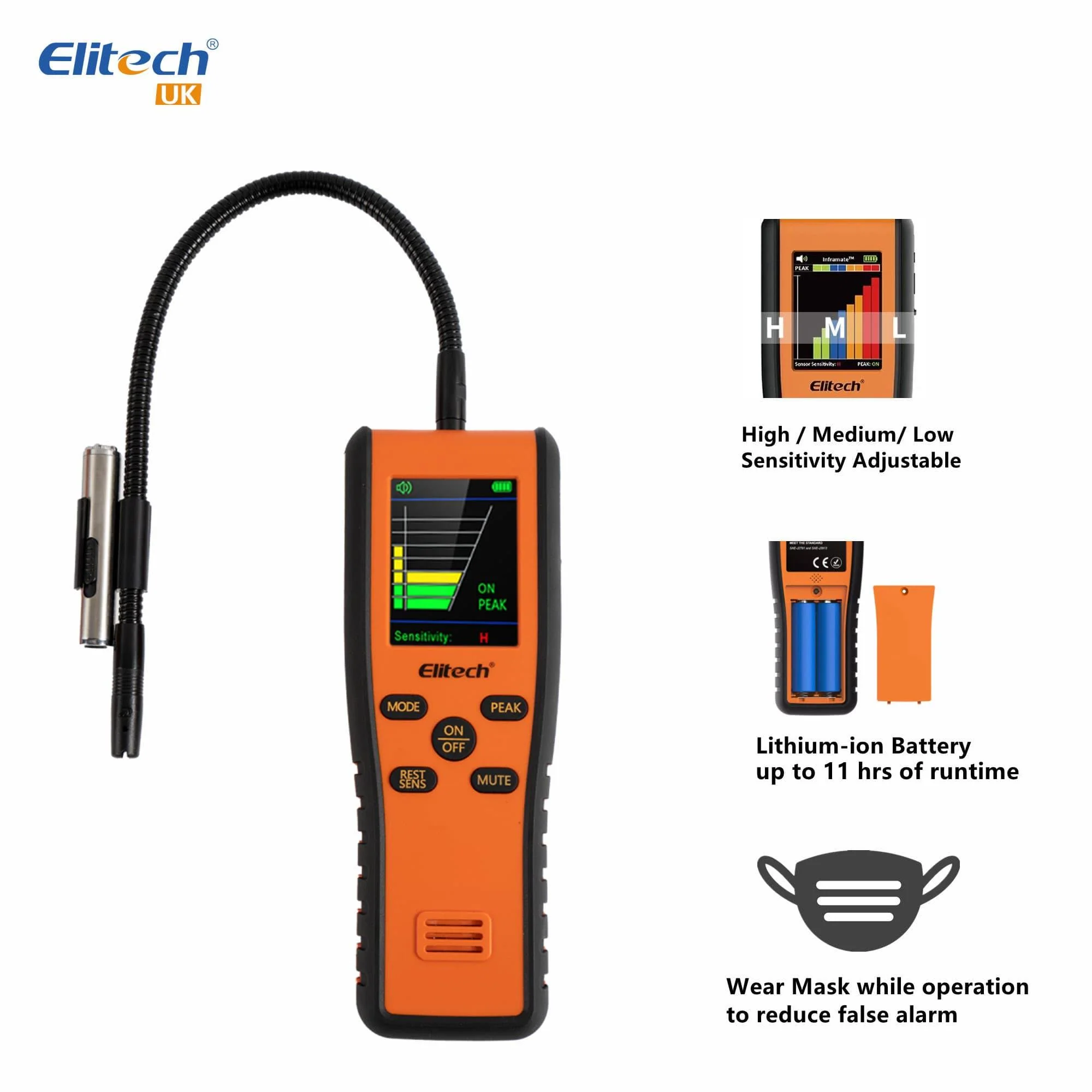

4. Sensitivity Adjustable*    With the highest sensitivity of 6g/year, and easy adjustment to medium (14/yr) and low (28g/yr) levels of sensitivity, the detector can help you quickly pinpoint leakage in various complex working conditions.
5. Rechargeable Lithium Battery*    Works up to 11 hours continuously on one full charge.

Parameter

Sensor Type	Infrared
Sensor Sensibility	High: 6g/year; Medium: 14g/year; Low:28g/year
Sensor Life	40,000 hours
Detectable Gases	R744 (CO2)
Auto OFF	After 10min of inactivity
Power	Two 18650 Lithium-ion Batteries
Battery Runtime	Up to 11 hours upon one full charge
Charging Time	Within 4hrs
Charging Voltage	DC 5V, 1A
Storage Temperature	-20°C~ 60°C (-4°F~ 140°F)
Operating Environment	Temperature: -10°C~ 52°C (-4°F~ 140°F) Humidity: Max.90% RH (non-condensing)
Alarm Mode	Audible and Visual
Tool Size	201*72*35mm (7.9*2.8*1.4in.)
Tool Weight	450g (15.9oz)
Certification	CE, SAE_J1627

Features

Carbon Dioxide Detection* The high sensitivity of 6g/y for detection of R744 (CO2) refrigerant leaks	Infrared Sensor* CO2 Specific sensor lasts over 10 years and sensitivity will not degrade over time	Sensitivity Adjustable* High/Medium/Low sensitivity selections to quickly pinpoint leakage in various environments

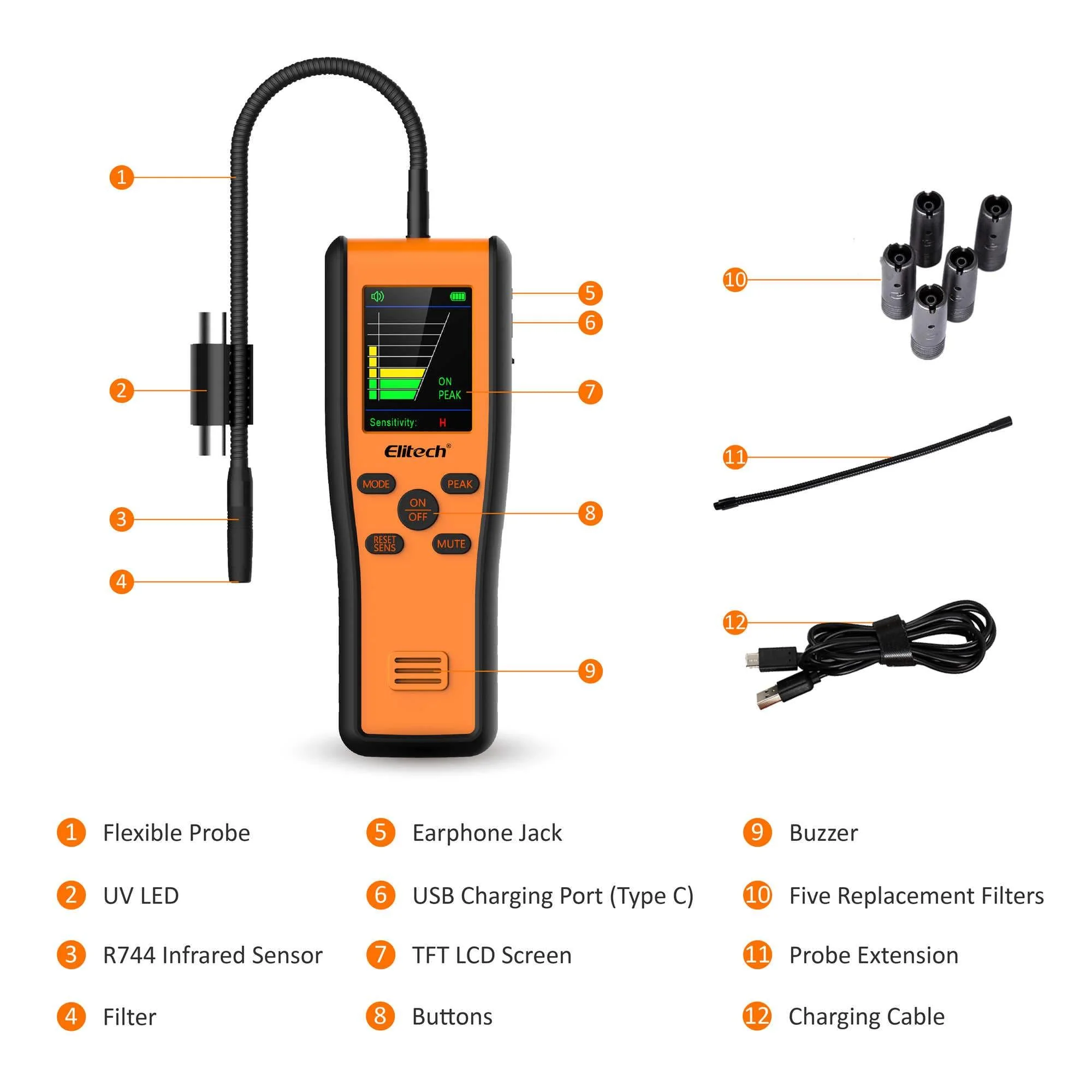

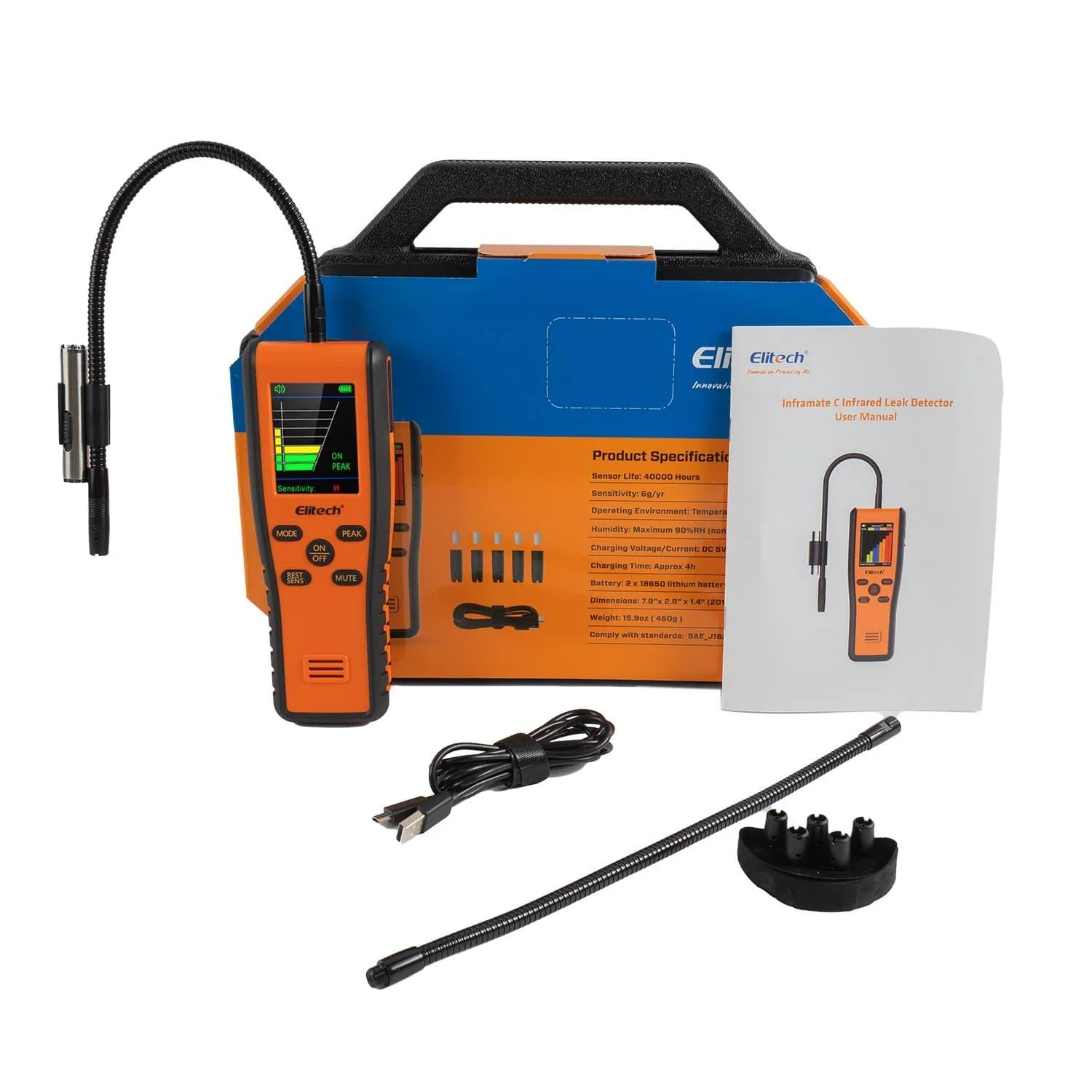

Large TFT Screen* Displays leakage value, peak value, sensitivity level, battery power vividly, for very easy operation	Rechargeable Lithium Batteries* Works up to 11hrs on one full charge	Backup Parts* An extension probe is included to extend probe distance. Five replacement filters are included for easy maintenance to better protect the sensor
