Elitech RC-5 Temperature Data Logger, Data Recorder, USB 2.0 Graphic Report, 32000 Points with Internal Sensor
|
|
|
|
|---|---|---|
LCD Visual DisplayLCD visual display, interface is simple and easy to use, easy to operate, convenient to check your data at any time. 1. Over Temperature Alarm & Upper/Lower Limits can be set 2. MAX/MIN values available 3. Large permanent data memory of 32000 points |

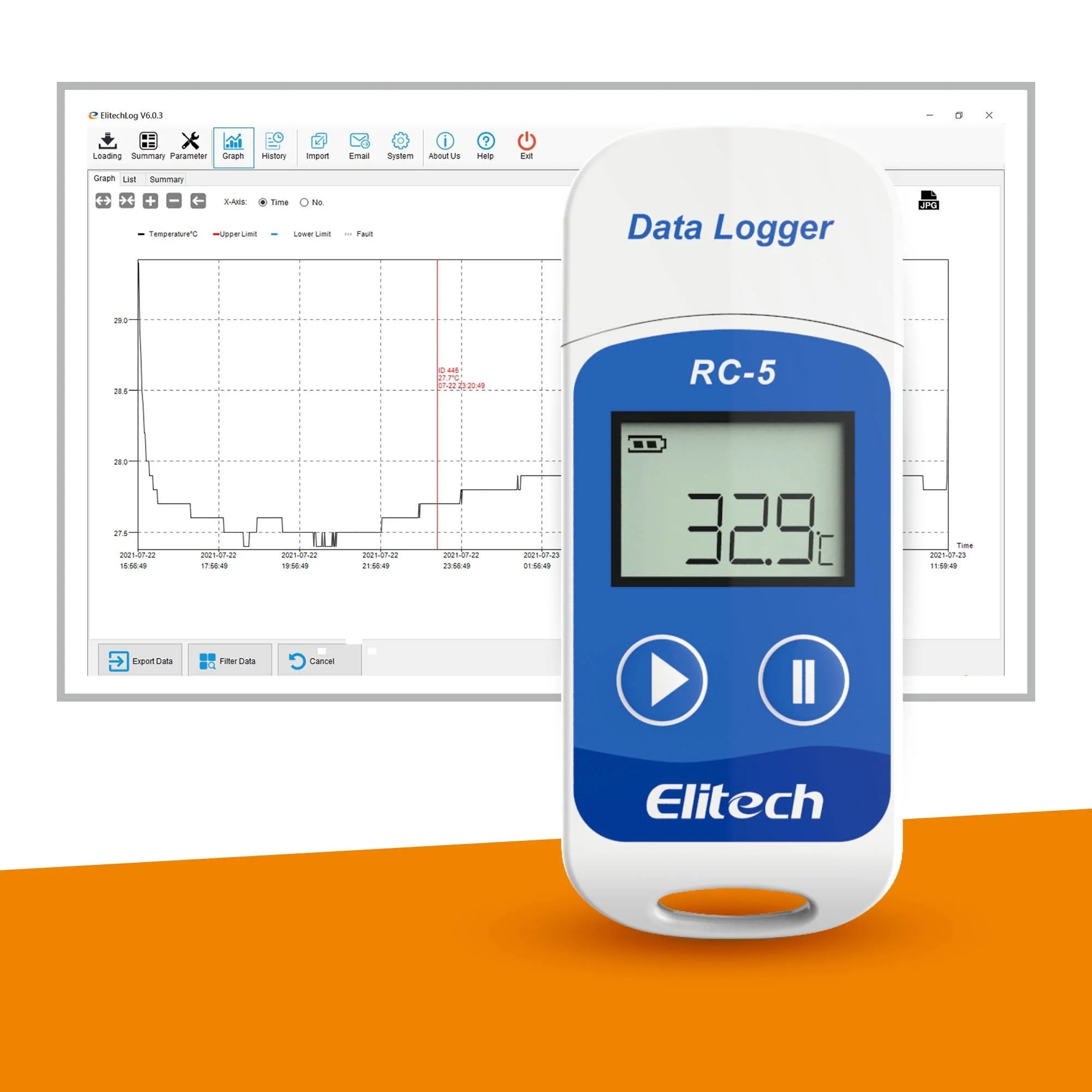

USB Plug and PlayThe simple USB interface allows you to measure conditions and instantly transfer them onto your PC, so you can create reports and share information faster. Instructions: Long press key of switch more than 4 seconds, after the interface display appear triangle mark, it indicates that the instrument has already started to record. |

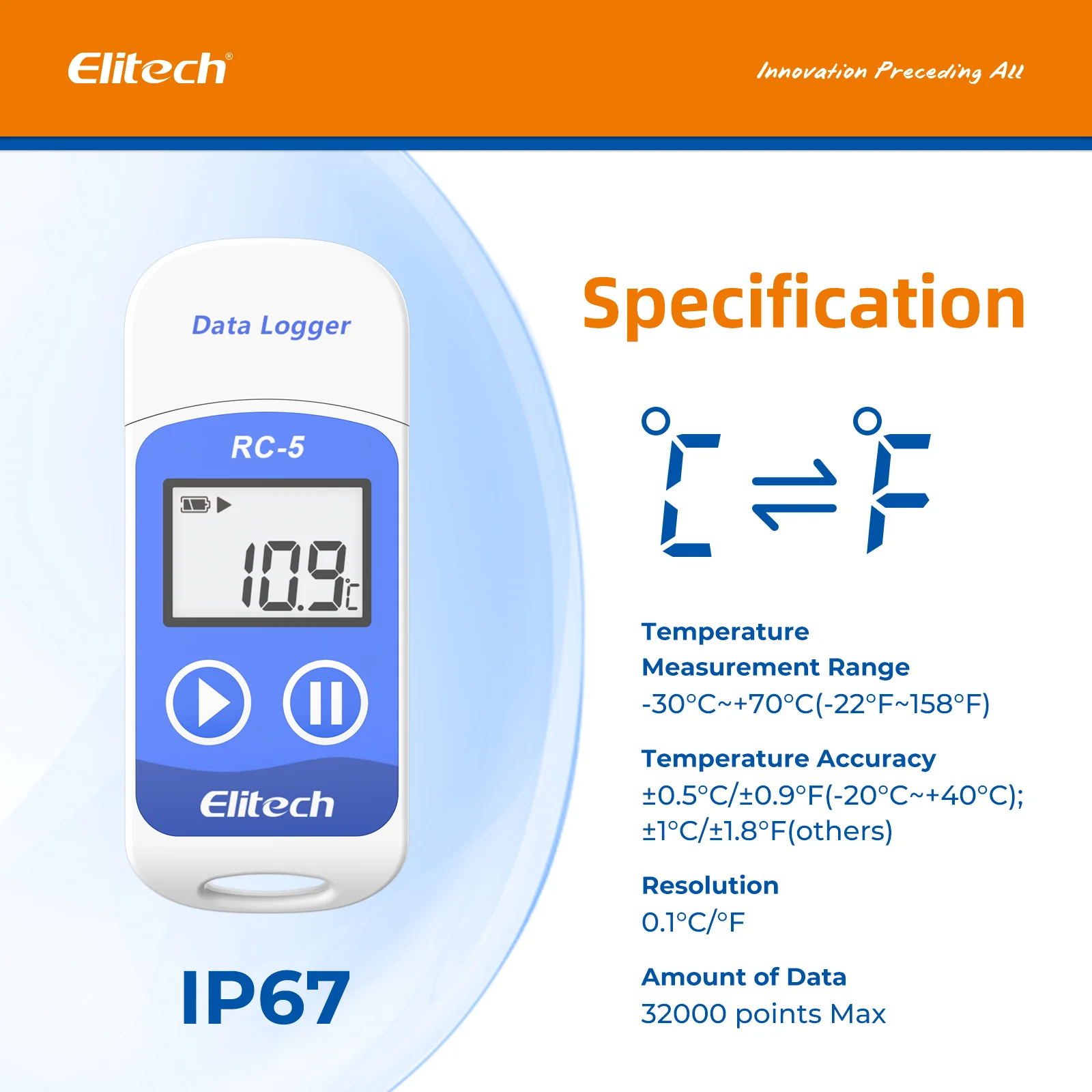

Accurate and Stable Monitoring1. Temperature measuring range: -30 °C ~ 70 °C; Resolution: 0.1 °C 2. Accuracy: ±0.5 °C(-20 ℃~+40 ℃); others, +1 ℃ 3.Temperature unit: ℃ or ℉ optional 4. Record interval can be set on software 5. Waterproof: IP67 |

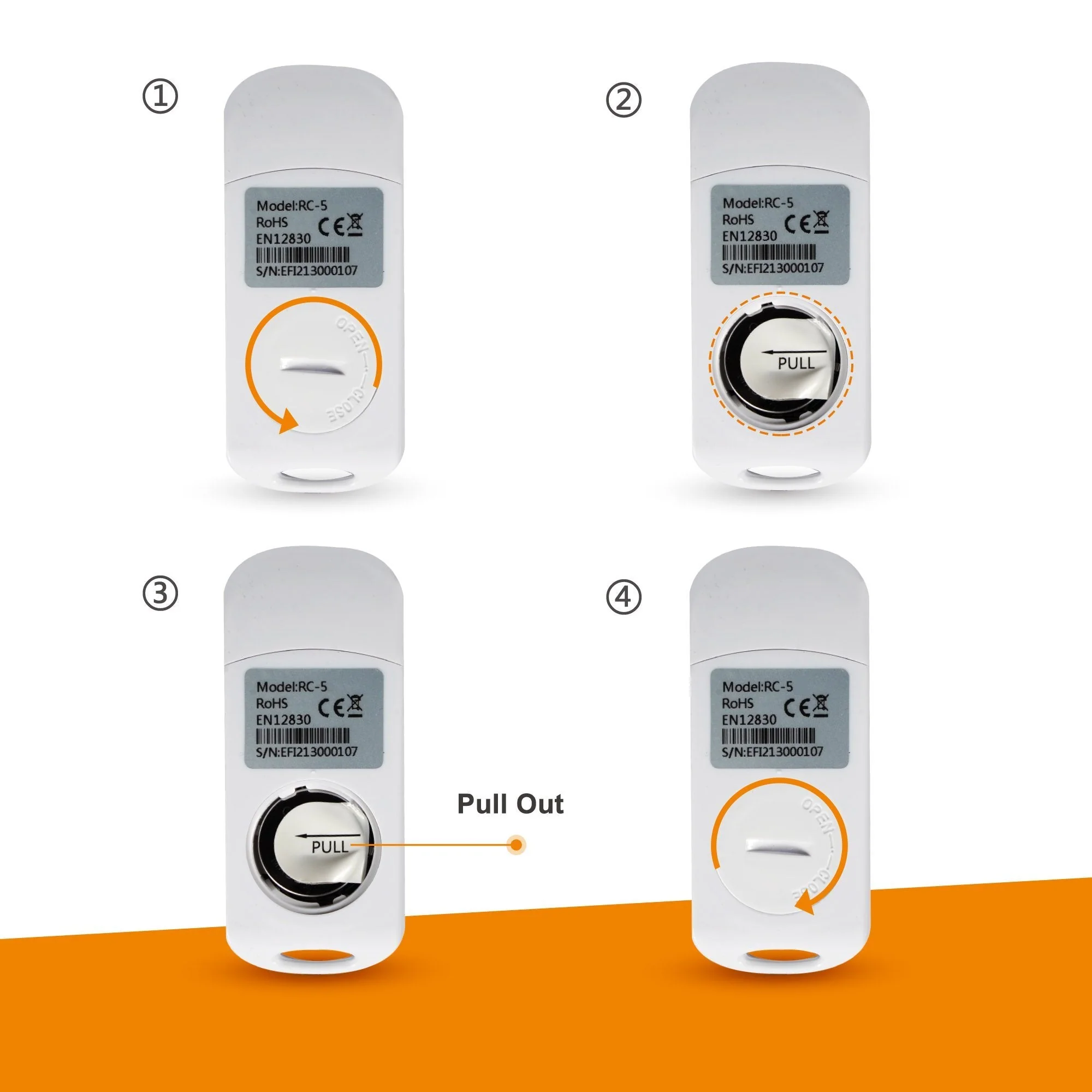

How to Install the Battery
1. Use a proper tool(such as a coin) to loosen the battery cover.
2. Install the battery with “+” side upward and keep it under the metal connector.
3. Put the cover back and tighten the cover.
Battery life: in normal temperature, if the record interval sets as 15 minutes, it could be used above one year.
Note: Do not remove the battery when the logger is running. Please change it when necessary.
Technical Parameters:
- 1. Record interval: 10 s~24 hours adjustable
- 2. Sensor: Internal NTC thermal resistor, no external sensor supported
- 3. Communication interface: USB
- 4. Power supply: CR2032 battery
- 5. CE certificate
- 6. Multiple uses: data can be removed and start a new round by our software

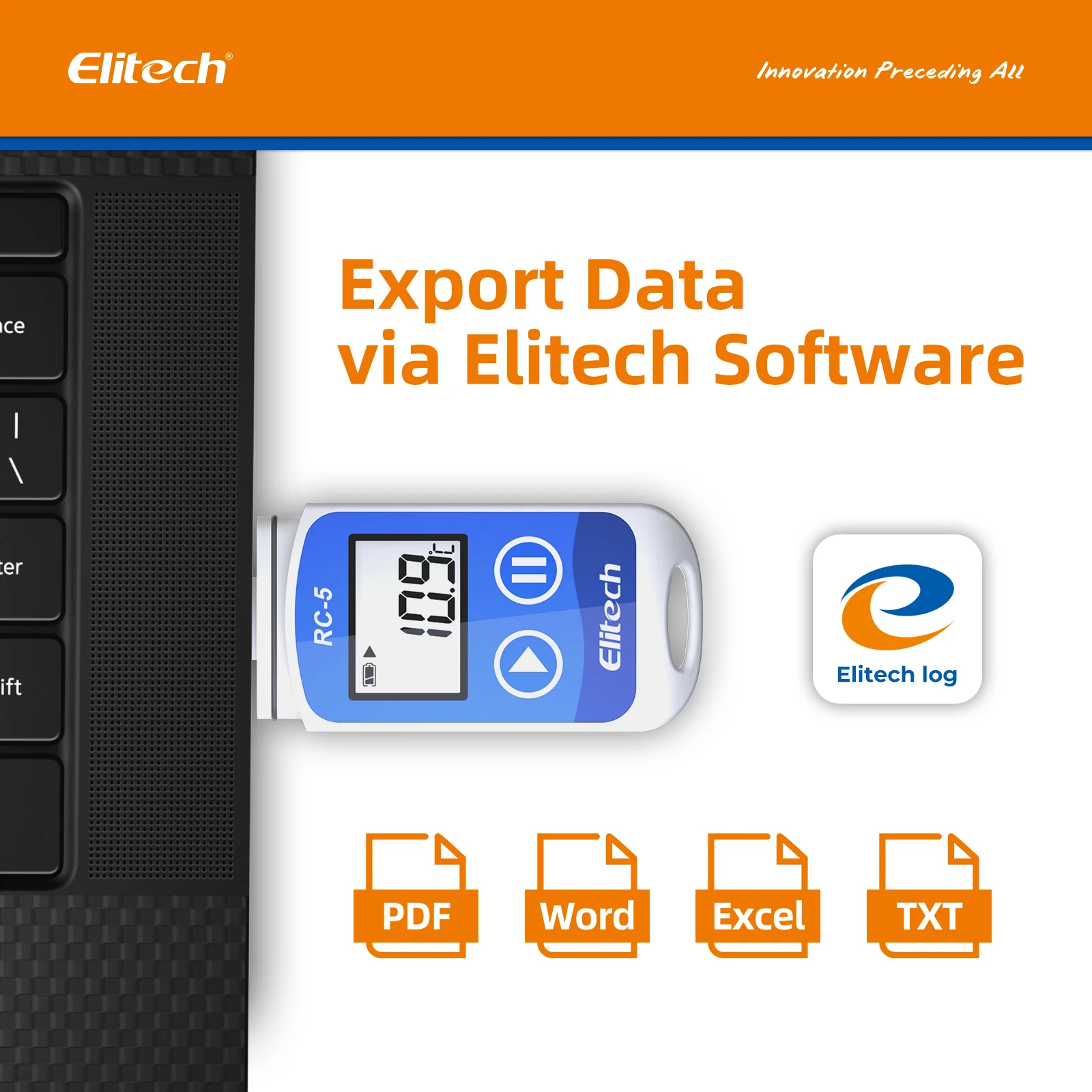

- 7. Data could be queried, saved, printed and exported in Word/Excel/TXT /PDF format.

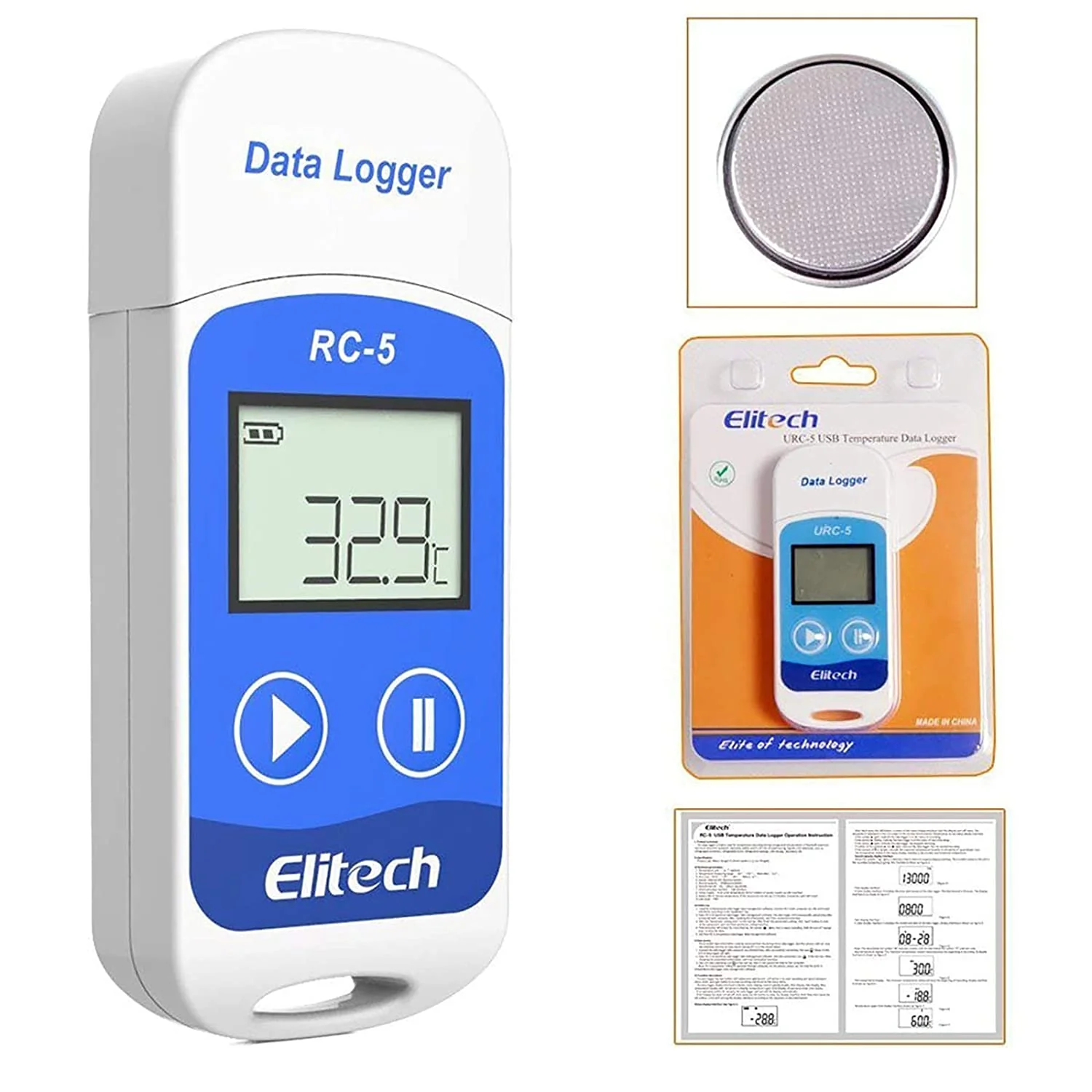

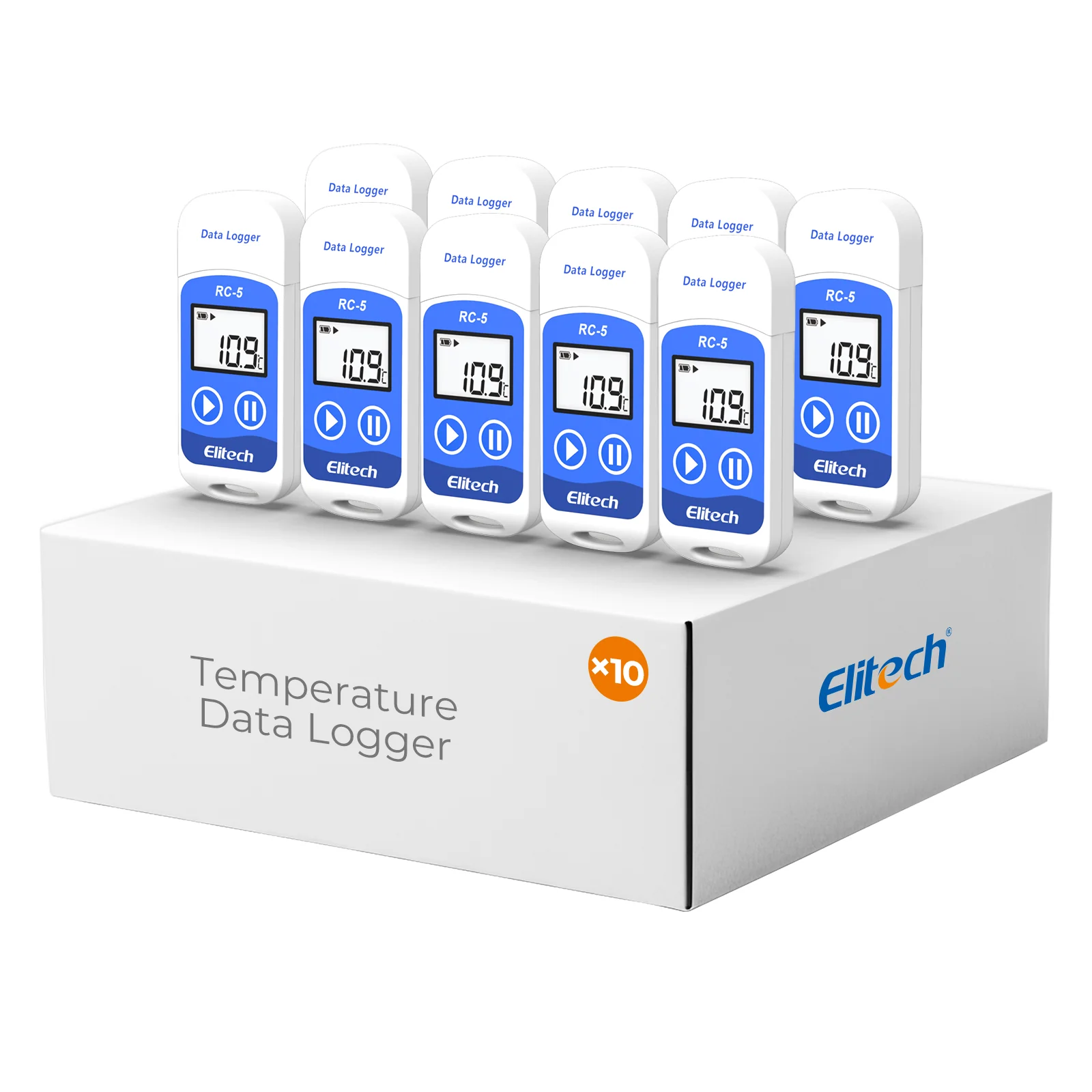

- 8. Package Included: 1 x Elitech RC-5 Data Logger; 1 x CR2032 Battery; 1 x User Manual
