Elitech STC-1000WiFi Temperature Controller Thermostat, Prewired - Just Plug and Play, WiFi Wireless Remote Control
Elitech STC-1000WiFi temperature controller thermostat can automatically switch between cooling and heating. It features pre-wired cooling and heating output sockets that can achieve “just plug and play “, Compared to the traditional thermostat that requires wiring, it is more convenient and safer to use, and it can be operated by people without any electrical foundation. It controls the temperature according to the temperature set value and the return difference. Compare to STC-1000Pro, Elitech STC-1000WiFi has embedded the Wi-Fi module that supports remote viewing, configuration and other operations via Elitech App.
With temperature measurement, temperature display, temperature control, temperature calibration, sensor fault alarm, over-temperature range alarm, compressor protection delay functions. It also has the function of Fahrenheit and Celsius conversion.
One-way sensor input: temperature probe sensor.

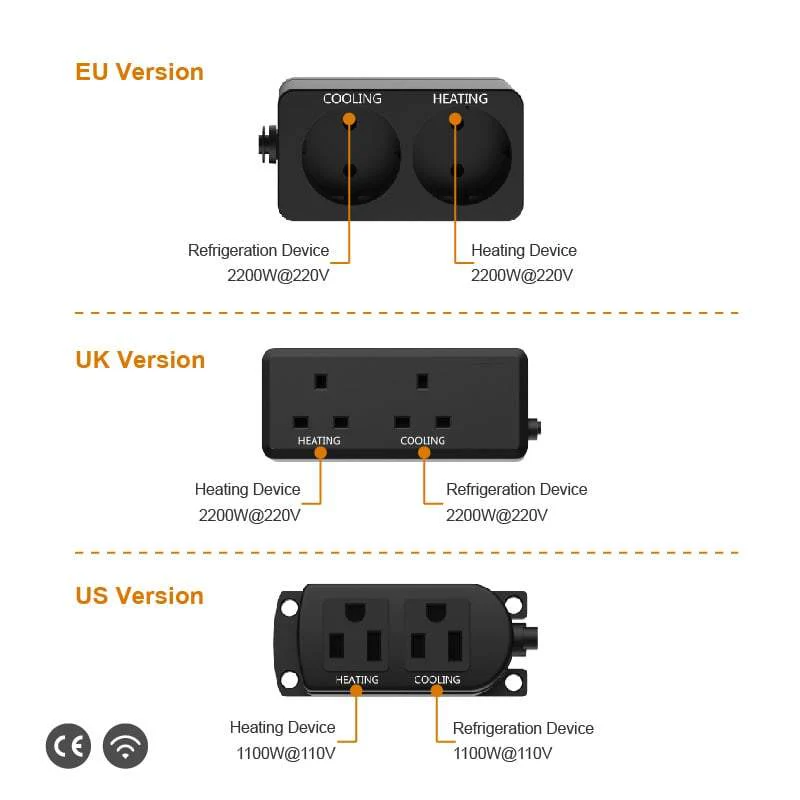

Two-way control outputs: cooling outlet (10A), heating outlet (10A).
Elitech STC-1000WiFi temperature controller thermostat with UK/EU/US version can be widely used in areas that need automatic temperature controls such as homebrew, pet breeding, seeding heat mat, aquarium, snake rack, seafood machine, aquaculture, hatchery/incubator farming, greenhouse planting, brew, ferment, fridge, freezer, slow cooker, etc.
Parameter
| Power supply | 110-240VAC, 50/60HZ |
| Total power consumption | 5W |
| Temperature measuring range: | -45°C ~ 115°C/-49 ~ 239°F |
| Temperature control range | -40°C ~ 110°C/-40 ~ 230°F |
| Temperature resolution | 0.1C/0.1°F |
| Temperature accuracy | ±1°C/±2°F |
| Operating ambient temperature: | -10°C~ˇ65°C / 14°F ~ 149°F |
| Storage temperature | -20°C~75°C / -4°F ~ 167°F |
| Relay contact capacity | 10A /110~240VAC |
| Sensor type | NTC Temperature Sensor(10KQ/ 25°C, B value=3435K) |
| Working mode | Heating or Cooling |
| Cable length(Sensor) | 2m |
| Cable length(Power plug) | 1.5m |
| Cable length(Heating/Cooling Outlet) | 0.3m |

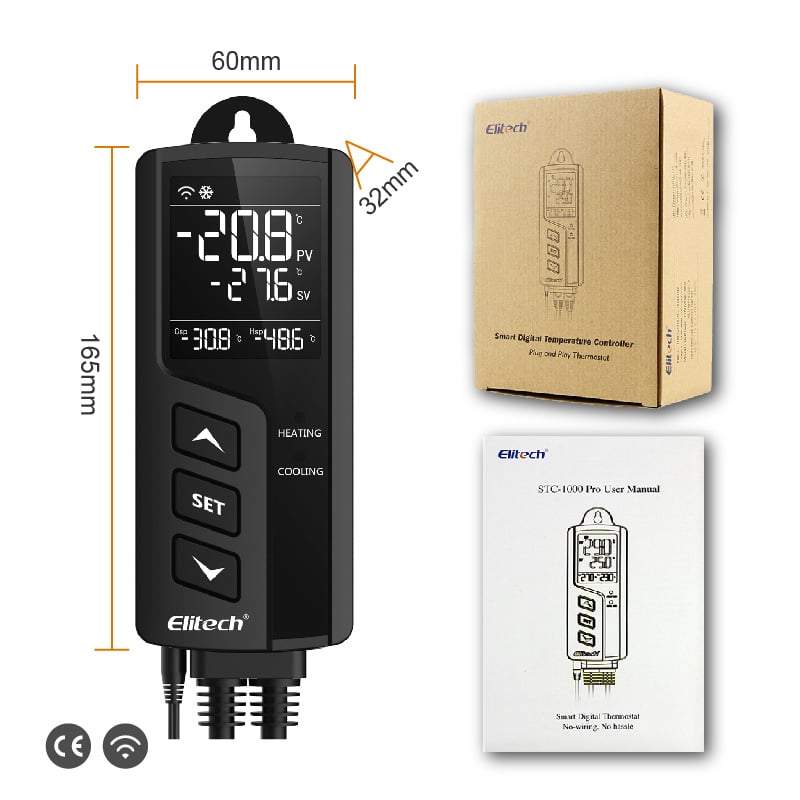

| Dimensions | 265mm x167.5mm |
| Best LCD screen viewpoint | 6 o'clock position |
| WiFi type | 2.4GHz WiFi |
Features
 |
 |
 |
|

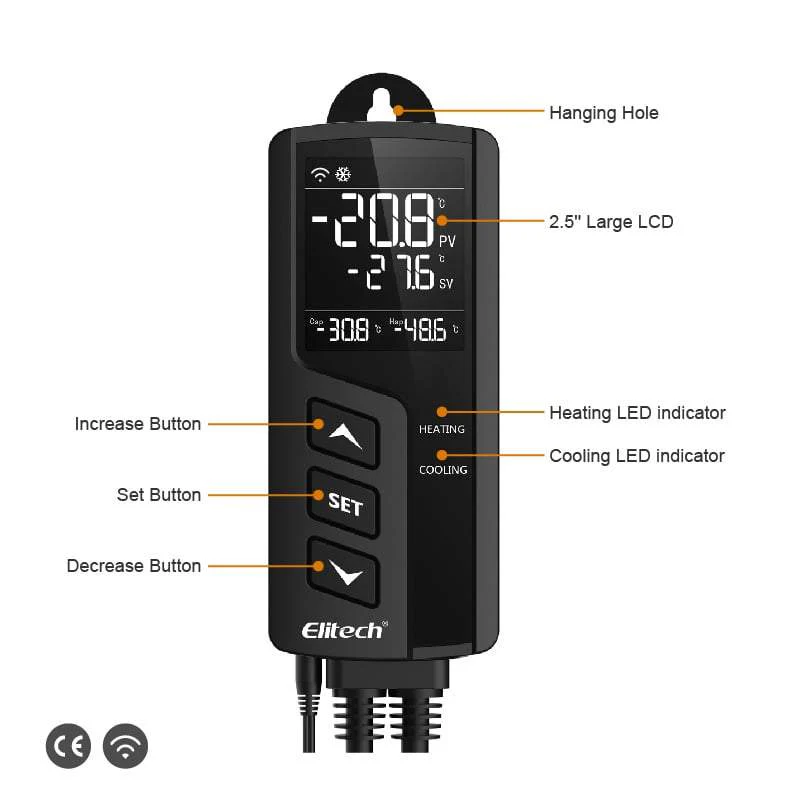

Plug and Play, Easy to Use* Simple 3-key and pre-wiring design, just plug and play |

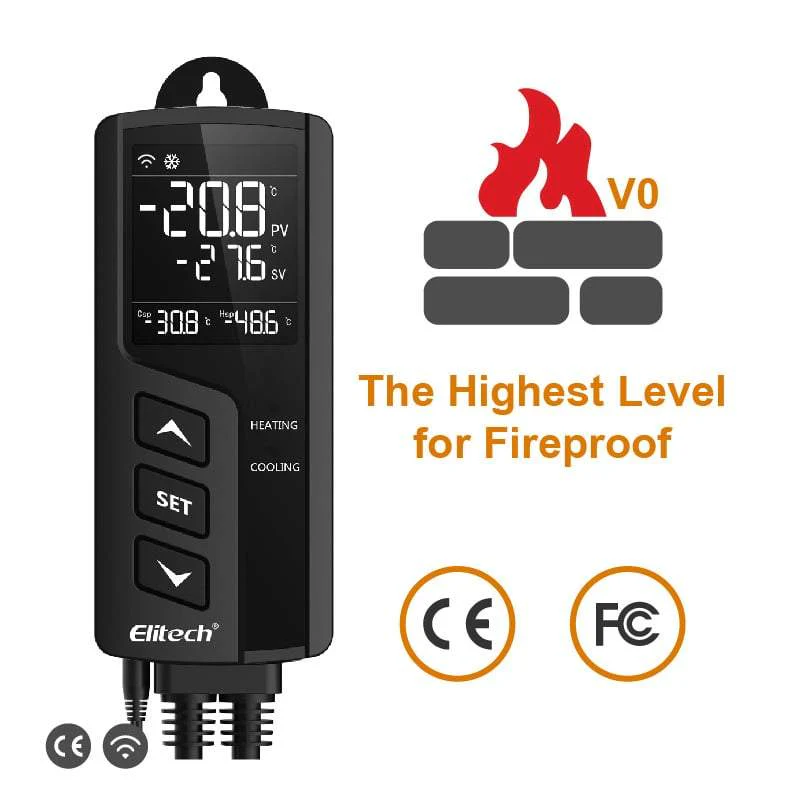

Safe and Reliable* Comply with CE and FCC standards, use PC+ABS flame-retardant shell, UL94 V-0 safety level (The highest level for fireproof) |
Remote Monitoring, More Intelligent* With WiFi, you can set parameters and view data, graphics, and alarm history on our Elitech iCold platform or Elitech App (free) |
 |
 |
 |
|
Multiple Functions* Setting high or low alarm clock, startup delay, temperature calibration, ℃ / ℉, etc. |
Wide Temperature Range, More Widely Use* The temperature control range is 40-110℃/-40~230℉. Start cooling or heating according to the set parameters to help maintain the required temperature at any time |

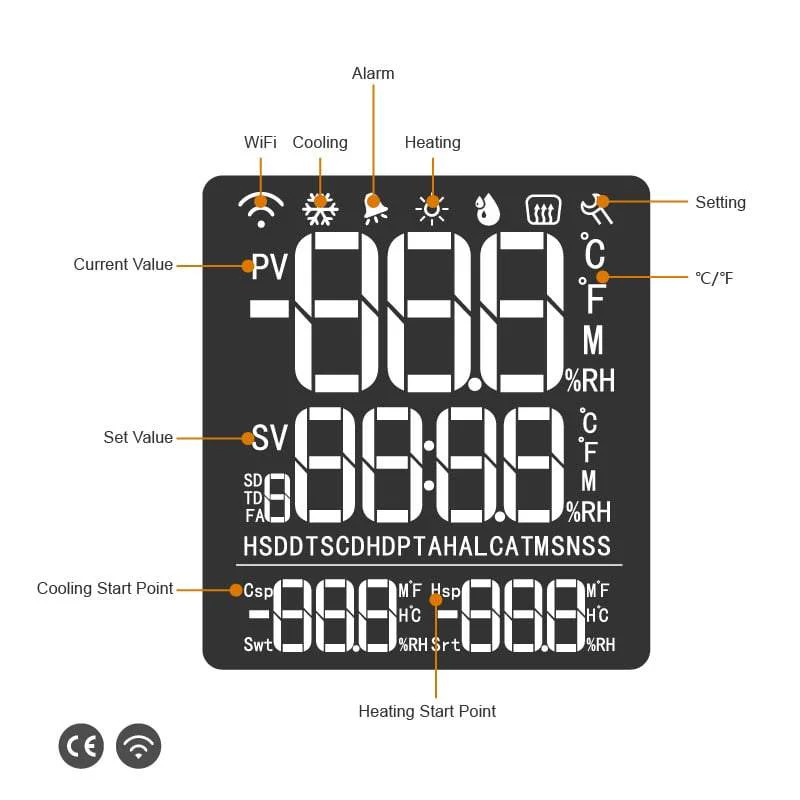

Clear Parameter Display* 2.5'' LCD large screen gives intuitive temperature viewing and parameter setting |
Elitech APP Connection
STC-1000WiFi Operation
Comparison
Elitech STC-1000WiFi Related Documents
- ElitechTC-1000WiFi Temperature Controller Thermostat User Manual
- Elitech STC-1000WiFi Temperature Controller Thermostat CE Certification
