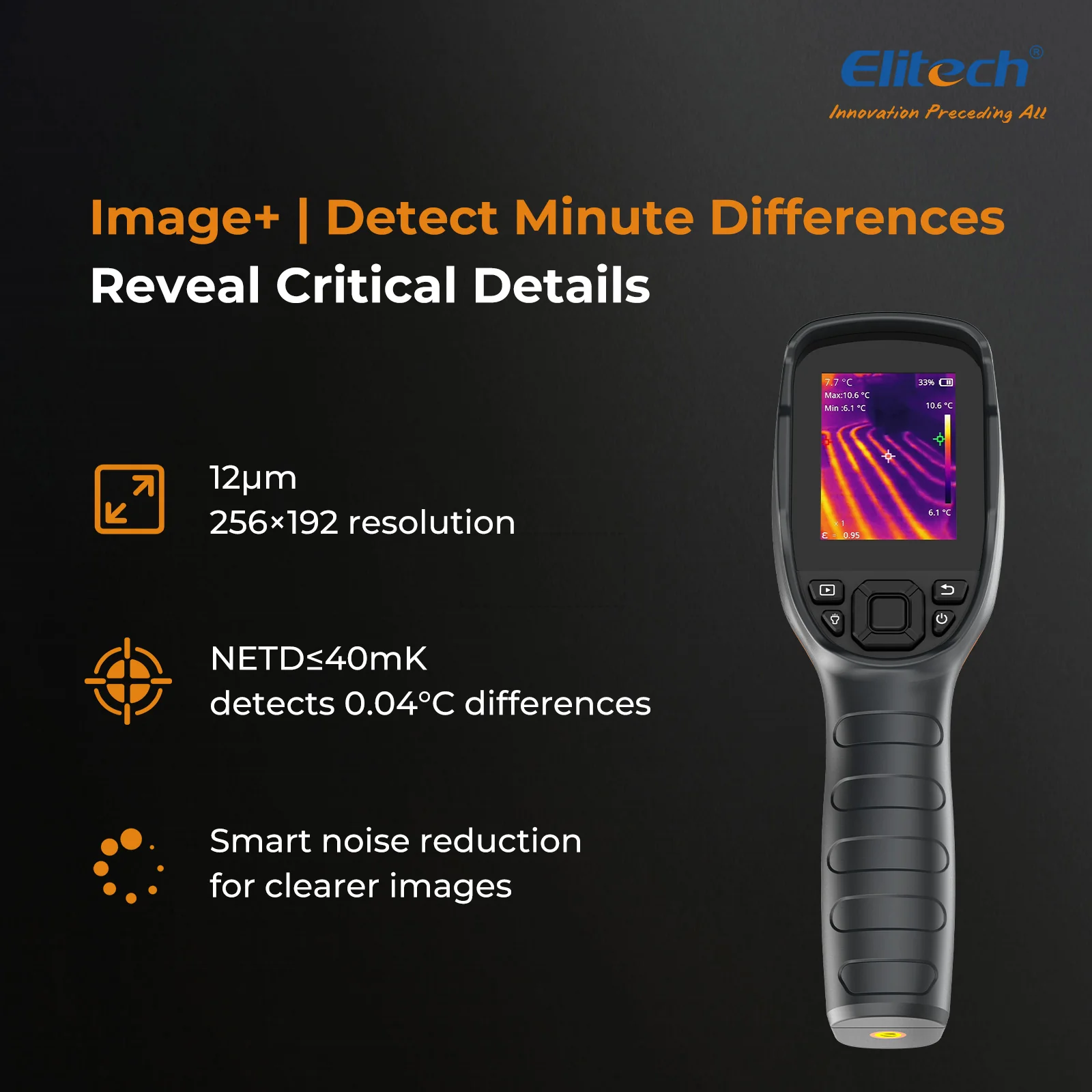

High-Resolution Infrared Imaging
Equipped with a 256×192 infrared thermal sensor, the TIC-210 delivers crisp, accurate thermal images ideal for HVAC maintenance, electrical diagnostics, and building inspections.
Real-Time Video and Image Capture
Easily capture thermal photos or record video with the press of a button. Features optional auto-save and a built-in gallery for instant playback and review.
Multiple Color Palettes & Image Modes
Choose from various color palettes and display modes to enhance visual clarity and highlight temperature anomalies based on your inspection needs.
Adjustable Measurement Parameters

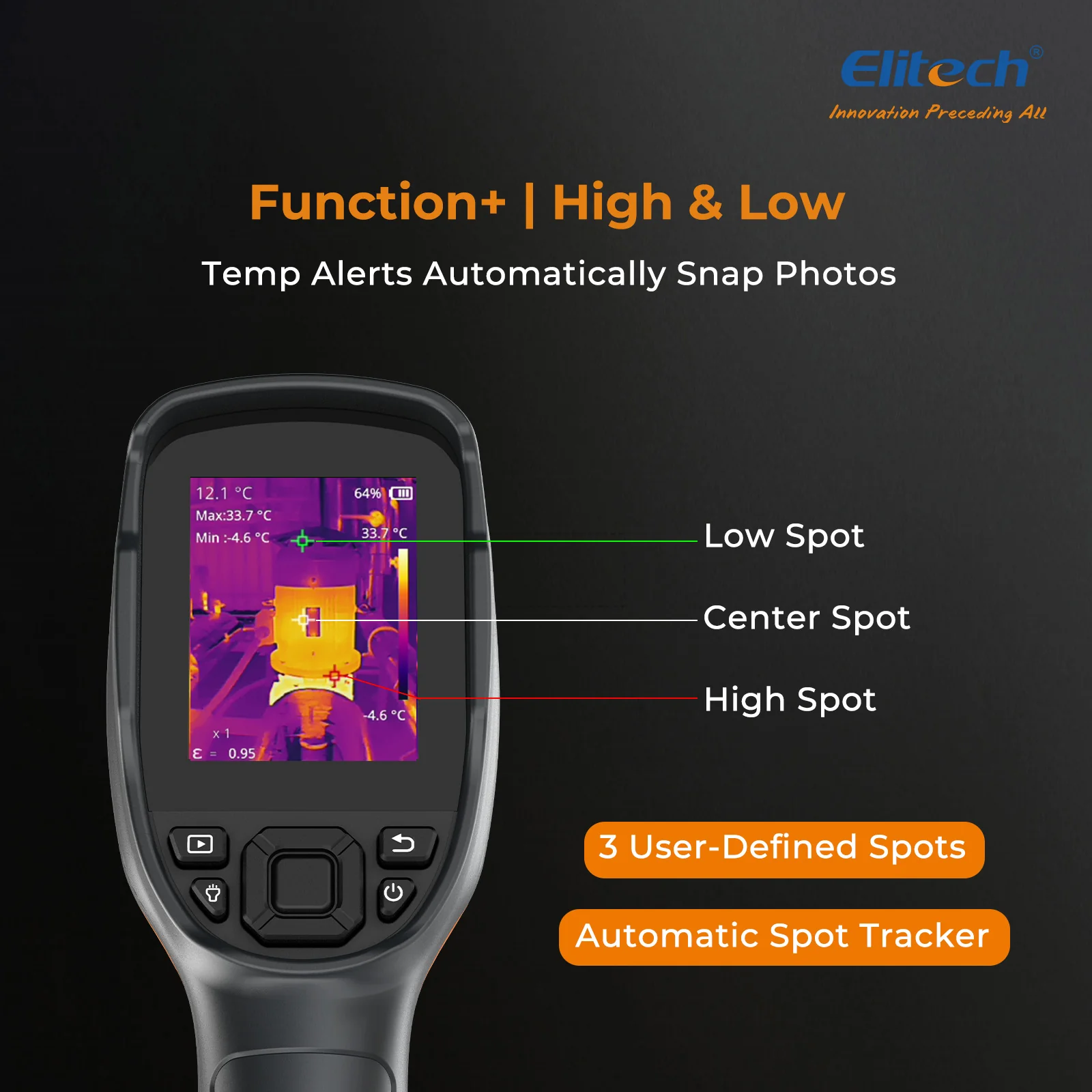

Customize emissivity, ambient temperature, and distance settings for accurate temperature readings. Set high/low temperature alarms to quickly identify problem areas.

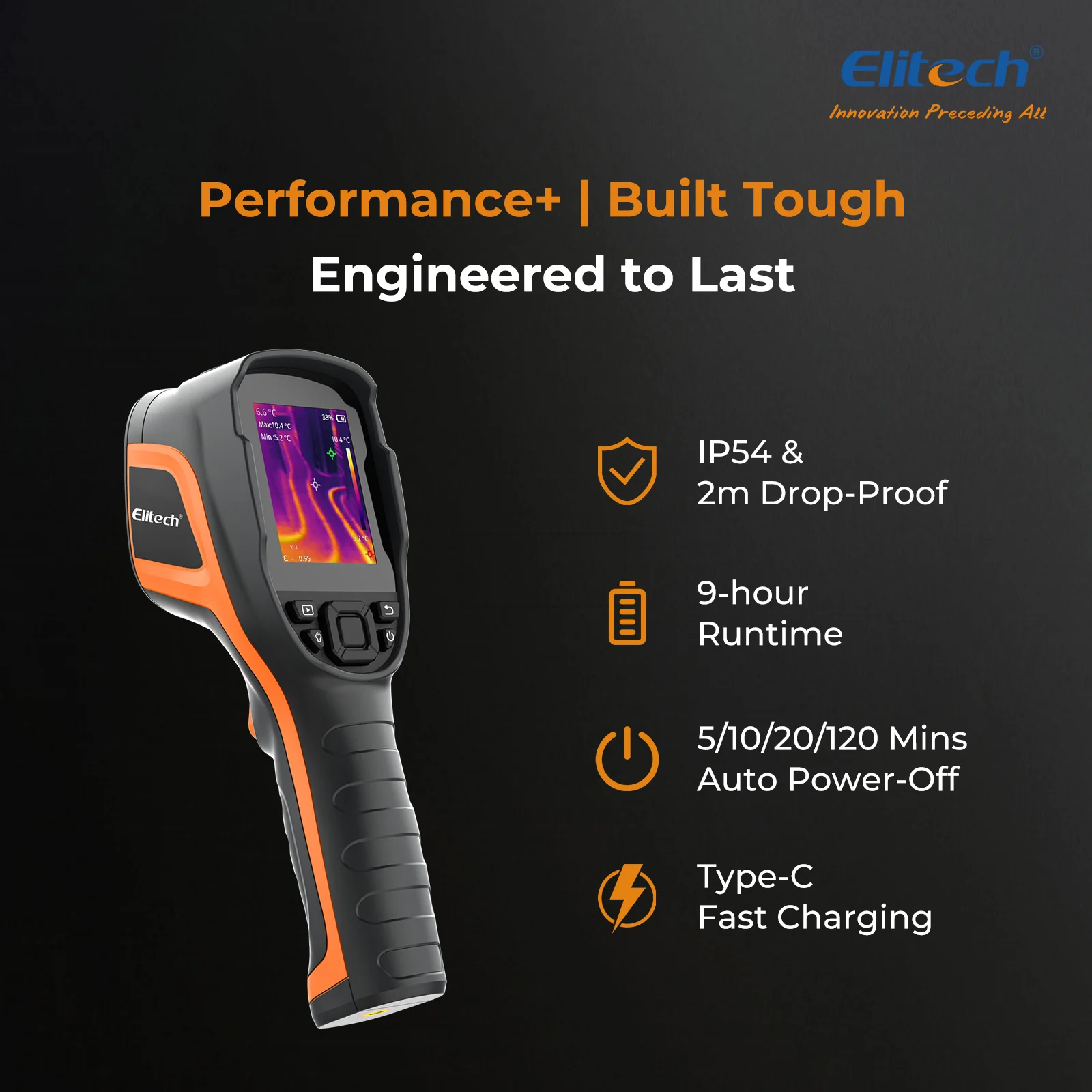

User-Friendly & Rugged Design
Intuitive interface with a 2.8"" screen, LED flashlight, and ergonomic one-hand operation. Designed to withstand tough environments with a wide working temperature of -10°C to +50°C.

Detector Type: 12μm Uncooled IR Detector
IR Resolution: 256×192
Spectral Range: 7.5-14μm
Thermal Sensitivity (NETD): <40mK (25°C, F1.0)
Frame Rate: 25Hz
Lens Focal Length: 3.2mm
Field of View (FOV): 56°×42°
IFOV (Spatial Resolution): 3.75mrad
Focus Type: Fixed Focus
Minimum Focus Distance: 0.3m
Temperature Range: -20°C~+150°C / 100°C~400°C
Accuracy: ±2°C or ±2% of reading (whichever
Display: 2.8-inch, 320×240
Digital Zoom: 1×/2×/4×
Color Palettes: 4 options
Image Mode: Infrared
Temperature Stretch: Auto
Storage: 32GB Micro SD included (Supports up to 128GB)
Interfaces: USB Type-C, SD Card Slot
Tripod Mount: UNC 1/4-20
Battery: Built-in Rechargeable Li-ion
Charging: USB Type-C
Battery Life: ~9 hours
Operating Temperature: -10°C~+50°C
Operating Humidity: 10%~95% (Non-condensing)
Storage Temperature: -20°C~+60°C
Protection Rating: IP54
Shock Resistance: 25g (IEC 60068-2-27)
Vibration Resistance: 25g (IEC 60068-2-6)
